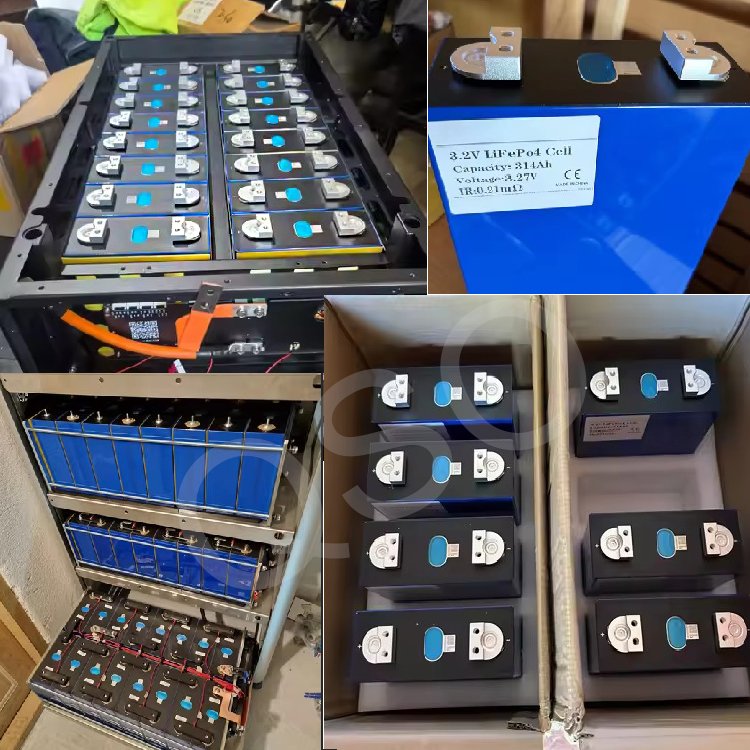

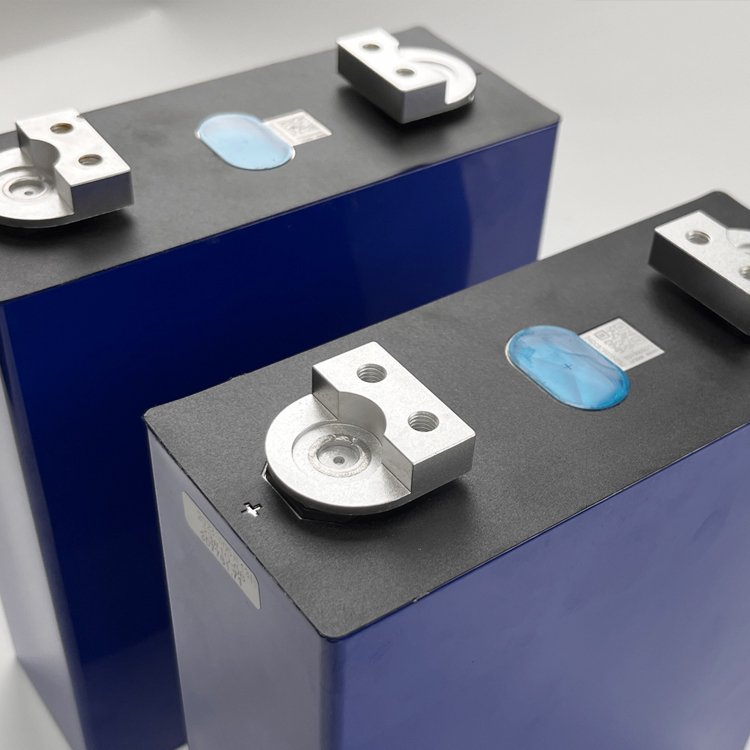

Double Terminal Plate Dual Holes Lf280K Lipo4 Cornex/Lfp 280K Grade a 3.2V 280Ah 314Ah Lifepo4 Prismat Lithium Ion Battery Zelle

9 yrs ExportingMOQ 4 piecesOEM/ODM ✓IEC 62619 / UN38.3 ✓
Request Quote
Color:
Nominal Voltage:
Nominal Capacity:
MOQ: 4 pieces  ·  Supply: 500+ models in stock  ·  Shipping: Express / Sea / Rail / DDP

Product Details

Specifications

Brand NameNew Terminal LF280K
Battery Size3.2V/280AH/896WH/mORE
Cycle Life8000 cycles
Cathode MaterialsLiFePO4
ApplicationToys, Power Tools, Home Appliances, Boats, Golf Carts, Submarines, Solar Energy Storage Systems, Uninterruptible Power Supplies, Home Solar Energy Storage System/UPS/RV/Off-grid/Power/BOATS,Golf Cart
Model NumberLF280/LF314
Operating Temperature(℃)-20~50℃
Place of OriginGuangdong, China
Cycle life8000 Times
Nominal Capacity280AH/314AH
Warranty5years
Dimension174*72*205mm
Max charge current3.65v
MOQ4 Pieces
Battery TypeLifepo4/lithium Battery
CertificationCE/ROHS/MSDS/UN38.3
Battery cellNew Double Terminal 3.2v 280ah 314ah lifepo4 cell
High Capacity: Shenzhen Qishou Technology Limited Offers 100% Brand New Grade A 280AH/314Ah/330AH/628AH with a maximum continuous discharge current of 314A/280A/330A, ideal for various applications,A perfect alternative to lead-acid batteries, with a 3-fold increase in battery life.

Long Lifespan and Economy: ≥8000/10000 Cycles and stable performance throughout the entire lifecycle, enhancing long-term economic benefit.

DDP Fast Delivery: Goods are available in stock at our local warehouse in Europe. DDP one-stop delivery service is supported. After placing the order, the goods can be delivered to major destinations in Europe within the shortest 7 working day.

Compliance Assurance: Fully complies with the latest regulations and certification requirements of the European Union.such as CE/ROHS/MSDS/IEC/EMC/UN38.3, ensuring the long-term compliance of your procurement and sales activitie,ensuring the highest safety for residential use.

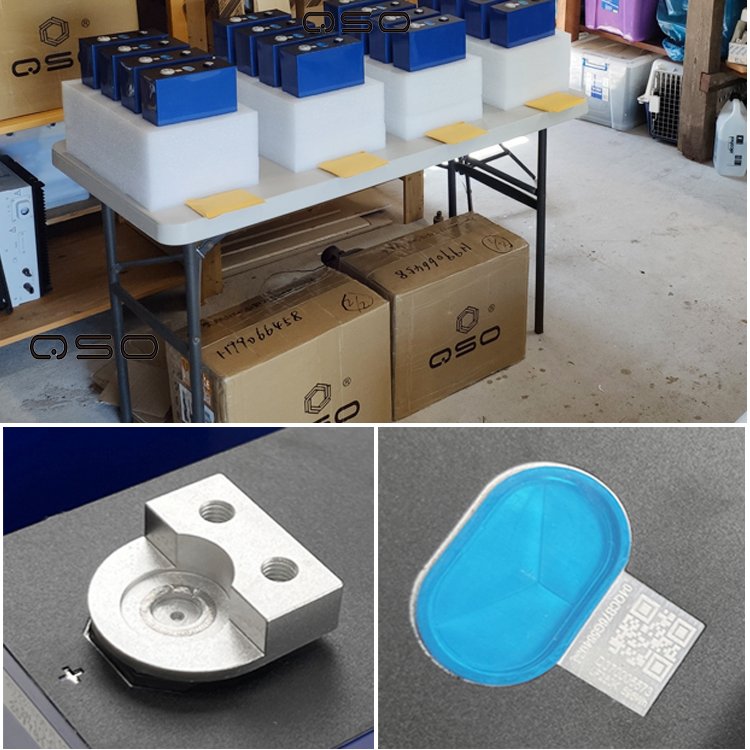

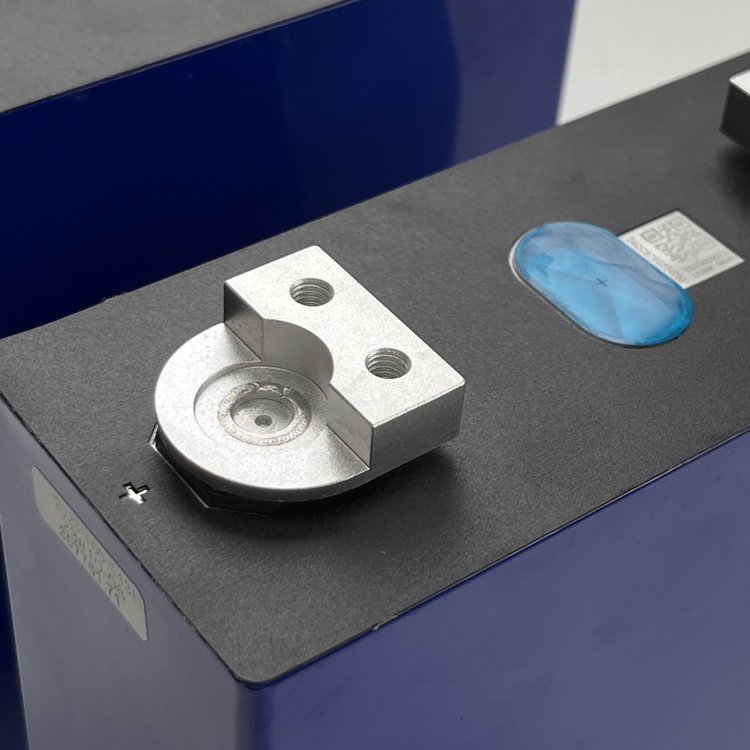

Safety, usability, long-term value:The batteries come with real product test reports, Laser-Welded M6/M8 Studs,standard "nanny-level" DIY accessories (Includes Busbars\Bolts\M6 Stud\terminal blocks/insulating sheets),to build your 12V/24V/48V/51.2V system safely.

5-Year Extended Warranty:We stand by our cells. Dedicated technical support for system integration, BMS matching, and installation troubleshooting.

Wide Compatibility: Suitable for diverse applications including house backup power/Back-up,RV/Marine Companion,Household Solar Home Energy Storage System/ESS/UPS/Off-grid/BOATS,Golf Cart.

QSO DDP Romania/Australia, Spain, Germany, Italy.philippines Shenzen shenzhen qishou technology limited QSO Double Terminal Plate Dual Holes Lf280K Lipo4 3 2 V Lithium Iron Phosphate Lfp 280K Grade a 3.2V 280Ah 314Ah Lifepo4 Prismat Lithium Ion Battery Zelle europe/us/usa eu stock european warehouse For diy 4s 8s 16s 12.8v 25.6v battery pack/DIY Speicher Photovoltaik Solar Alternative/off-grid off grid homeenergystorage solar power system.

Frequently Asked Questions

Yes, we guarantee 100% Grade A brand new. Each cell has an original QR code; you can verify capacity, IR, and factory date via tester or official database.

The battery can withstand a continuous maximum discharge current of up to 314A, thanks to its extremely low internal resistance design (less than 0.25 milliohms). The amount of heat generated during ultra-high power output is minimal, and its stability and safety far exceed those of ordinary batteries. A 48V system with 16 series-connected cells, a discharge current of 314A, means it can support a maximum instantaneous power output of over 16 kilowatts. You can easily drive high-power inverters.

The new generation products (such as 314Ah) can help achieve lower cost per unit of electricity (LCOS). The specific savings ratio needs to be calculated based on the project.

Supports various trade terms like EXW, FOB, CIF, DDU, and DDP.Most of the products are available in stock at overseas warehouses, we can make 3-7days ddp fast delivery. For USA,Canada,Austraila and most of European country , we provide tax included services, door to door, once you place an order ,then you will receive your new battery pack in about 40-55 days at your home! We also have Oversea warehouse service, 3-7days arrive, no tax fees, please contact with our sales !

UPS, FEDEX , Post Mail and so on. We can also ship with your own shipping agent. Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo you the done order and let you know the forwarder picked it up.

The most stable lithium iron phosphate battery has been adopted. Its thermal stability far exceed that of other types of batteries. From the very beginning, it significantly reduces the risk of thermal runaway. The built-in intelligent BMS (Battery Management System) of the battery provides multiple hardware-level protections against overcharging, overdischarging, overcurrent, short circuit and high temperature. It has also passed strict certifications such as CE/ROHS/MSDS/UN38.3 to ensure safe.

BMS provides overcharge protection to prevent damage to the battery cells, overdischarge protection to avoid deep discharge and battery damage, overcurrent and temperature protection to prevent circuit overheating (for example, 0°C - 45°C during charging), and automatically intervenes when the temperature is too high. Battery balancing: ensures that the voltages of all battery cells remain consistent, thereby extending the overall lifespan of the battery.

Full EU Certifications & 5-Year Warranty,Fully compliant with CE/ROHS/MSDS/IEC/EMC/UN38.3 standards, ensuring the highest safety for residential use. We offer a 5-year limited warranty and lifetime technical support from our service centers. We offer clear warranty policies and a localized technical support network. In case of any issues, quick responses can be provided via hotline or online support. When necessary, professional technical engineers will be arranged for 1-on-1 special handling.

Grade A Cells OnlyCATL / REPT / EVE / CALB
100% EOL TestingFull charge-discharge before shipping
In-house BMS R&DCAN/RS485, active balancing
Global ShippingDDP EU/US, Sea, Rail, Express
