Eu Stock Single 2kWh 3.2V MB56 LiFePO4 628Ah Lithium Battery 660AH Cell for DIY 32kWh 64KWH ESS Solar Home Energy Storage System

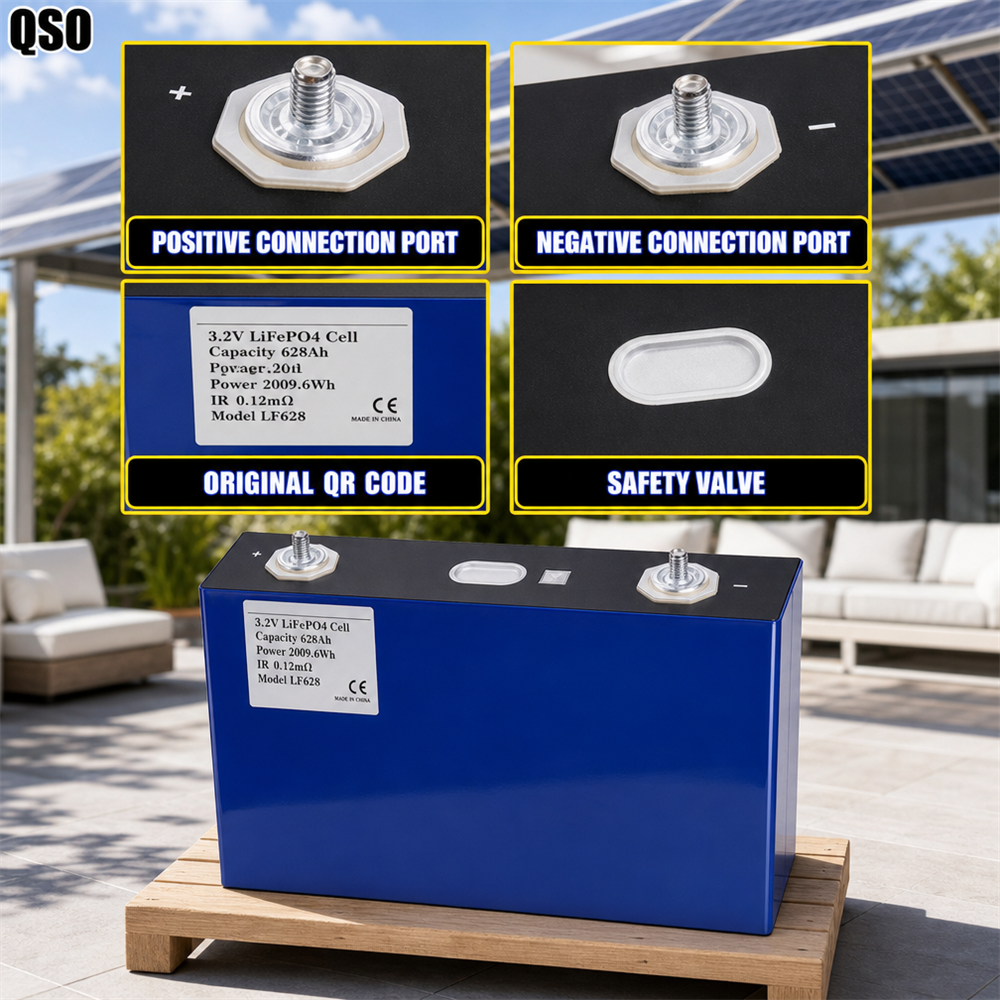

The nominal capacity is Over 628Ah and the nominal voltage is 3.2V. 3.2 * 628 = 2.010 kWh, Therefore, the energy of a single cell is approximately 2.009 kWh, which is twice that of 314 Ah and 2.24 times that of 280 Ah. This is the most crucial advantage, significantly enhancing the energy density.

Under an 80% depth of discharge (DoD) condition, the cycle life can exceed 8,000 times (according to the test standard IEC 62619). This means that even if a charge-discharge cycle is performed once a day, it can be used for over 20 years (theoretical value), resulting in a higher long-term investment return rate (ROI).

System efficiency improvement, operation and maintenance reduction: Significantly reduces the number of connection components and sampling points in the battery cabinet. The energy storage system built based on MB56 cells can reduce 50% of maintenance components and 30% of the total life cycle maintenance labor costs, making operation more convenient and economical.

Yes, low-temperature performance is one of its key features. It can discharge normally at temperatures as low as -30°C, with a good capacity retention rate, which solves the problem of limited usage of lithium iron phosphate batteries in cold regions.

Payback depend on electricity rates avoided.Example:Germany($0.35/kWh retail).32kWh MB56 system cycle 80% DOD daily=25.6kWh/day*365=9344kWh/year avoided grid consumption.At $0.35/kWh=$3270/year savings.System cost~$2800 (cell+inverter+installation).Simple payback:~10 months.USA ($0.15/kWh average): 9,344kWh*$0.15=$1402/year savings,system~$4500~3.2 year payback.ROI is highly dependent on local electricity rateshighest in Europe,Australia,and island grids with expensive diesel-generated power.

Consistency in internal resistance (IR) is critical for preventing thermal imbalance in large-scale battery strings. QSO employs a 100% automated inspection process using high-precision AC impedance bridges and DC internal resistance measurement tools. Every MB56 cell must fall within a strict IR tolerance range of ≤0.25mΩ. Our AI-driven manufacturing platform tracks IR data from the initial slurry mixing stage to the final formation and grading process.

The QSO MB56 628Ah cell is specifically engineered to optimize the LCOE financial model for utility-scale projects. By doubling the energy density per cell compared to 314Ah models, it reduces the total number of components required for a given MWh installation. This leads to a 12% reduction in Balance of System (BoS) costs, including cabling, cooling systems, and BMS controllers. Furthermore, the 10,000-cycle life at 80% DOD significantly extends the project revenue period.

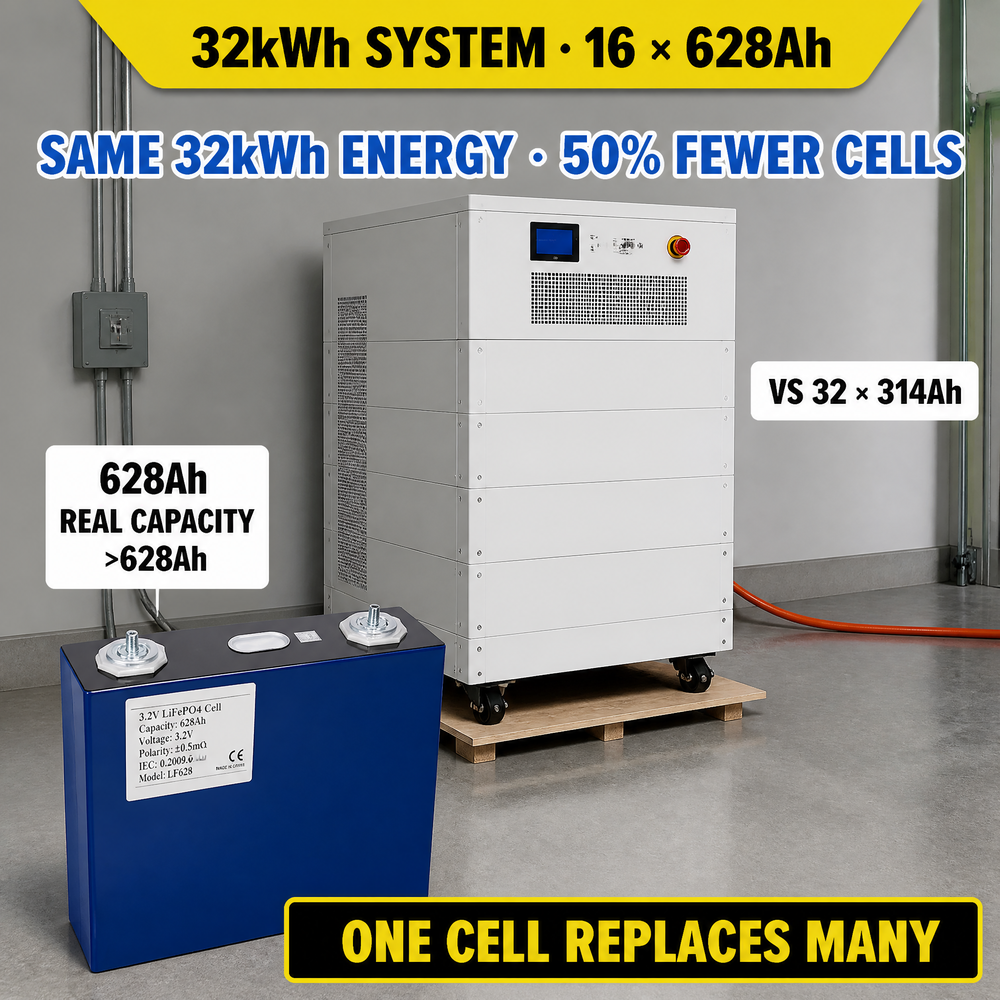

The decision framework:(1)System size <15kWhL:280/314Ah provides better granularity;(2)System size 15~32kWh:MB56 eliminates parallel connections entirely, simplifying assembly and improving reliability;(3)System size 32~100kWh:MB56 reduces cell count by 50% vs.314Ah (32 cells vs.64 for 32kWh),cutting BMS count and assembly labor in half;(4) Commercial/industrial:BOS cost savings of $50~80/kWh vs.smaller cells become material at 100kWh+ scale.
