MB56 3.2V 628Ah Grade a LiFePO4 8000-Cycle Battery Cell for Energy Storage Solar System & DIY Battery

The nominal capacity is Over 628Ah and the nominal voltage is 3.2V. 3.2 * 628 = 2.010 kWh, Therefore, the energy of a single cell is approximately 2.009 kWh, which is twice that of 314 Ah and 2.24 times that of 280 Ah. This is the most crucial advantage, significantly enhancing the energy density.

Under an 80% depth of discharge (DoD) condition, the cycle life can exceed 8,000 times (according to the test standard IEC 62619). This means that even if a charge-discharge cycle is performed once a day, it can be used for over 20 years (theoretical value), resulting in a higher long-term investment return rate (ROI).

System efficiency improvement, operation and maintenance reduction: Significantly reduces the number of connection components and sampling points in the battery cabinet. The energy storage system built based on MB56 cells can reduce 50% of maintenance components and 30% of the total life cycle maintenance labor costs, making operation more convenient and economical.

Yes, low-temperature performance is one of its key features. It can discharge normally at temperatures as low as -30°C, with a good capacity retention rate, which solves the problem of limited usage of lithium iron phosphate batteries in cold regions.

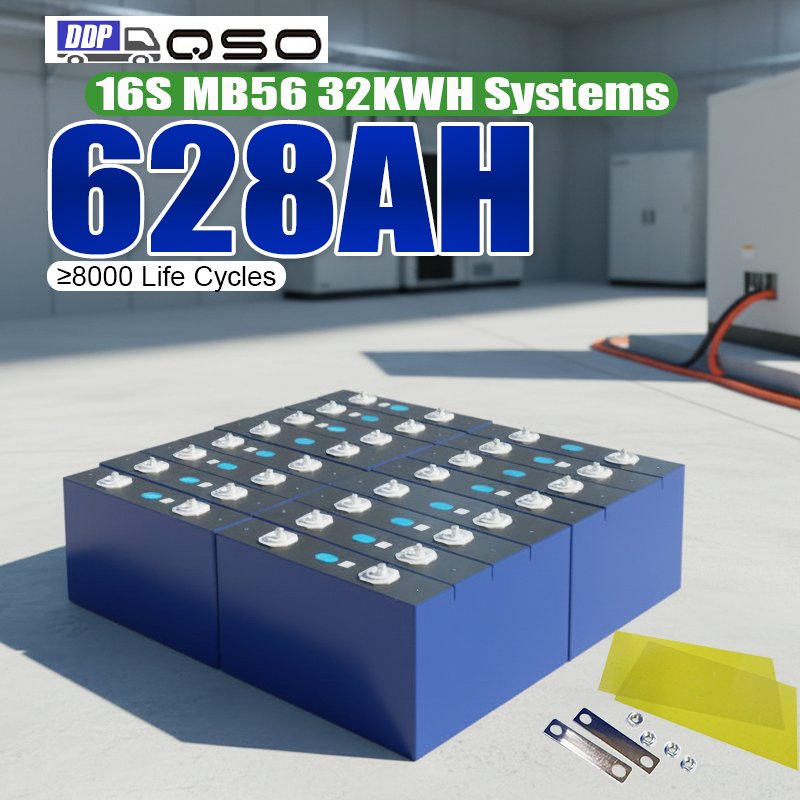

The decision framework:(1)System size <15kWhL:280/314Ah provides better granularity;(2)System size 15~32kWh:MB56 eliminates parallel connections entirely, simplifying assembly and improving reliability;(3)System size 32~100kWh:MB56 reduces cell count by 50% vs.314Ah (32 cells vs.64 for 32kWh),cutting BMS count and assembly labor in half;(4) Commercial/industrial:BOS cost savings of $50~80/kWh vs.smaller cells become material at 100kWh+ scale.

Payback depend on electricity rates avoided.Example:Germany($0.35/kWh retail).32kWh MB56 system cycle 80% DOD daily=25.6kWh/day*365=9344kWh/year avoided grid consumption.At $0.35/kWh=$3270/year savings.System cost~$2800 (cell+inverter+installation).Simple payback:~10 months.USA ($0.15/kWh average): 9,344kWh*$0.15=$1402/year savings,system~$4500~3.2 year payback.ROI is highly dependent on local electricity rateshighest in Europe,Australia,and island grids with expensive diesel-generated power.

BMS provides overcharge protection to prevent damage to the battery cells, overdischarge protection to avoid deep discharge and battery damage, overcurrent and temperature protection to prevent circuit overheating (for example, 0°C - 45°C during charging), and automatically intervenes when the temperature is too high. Battery balancing: ensures that the voltages of all battery cells remain consistent, thereby extending the overall lifespan of the battery.

some of times in stock, we can make 3-7days fast delivery. For USA, Canada, Australia and most of European country , we provide tax included services, door to door, once you place an order ,then you will receive your new battery pack in about 40-55 days at your home! We also have Oversea warehouse service, 3-7days arrive, no tax fees, please contact with our sales ! UPS, FEDEX , Post Mail and so on. We can also ship with your own shipping agent.
